1. Describe
Fast acting chip fuses help provide overcurrent protection for systems using up to 63VDC DC power. The fuse's monolithic multilayer design helps provide the highest holding current in the smallest footprint, reduces diffusion-related aging, improves product reliability and resiliency, and improves high temperature performance in a variety of circuit designs. These RoHS-compliant surface-mount devices have robust arc-extinguishing properties that help facilitate the development of more reliable, high-performance consumer electronics such as notebook computers, multimedia devices, cell phones, and other portable electronics.
2. Feature
1. Lead-free and RoHS compliant
2. Halogen free
3. Monolithic, multi-layer designs
4. High temperature performance
5. -55°C to +125°C operating temperature range
3. Benefit
1. Small size and high rated current
2. Temperature stability
3. High reliability and resiliency
4. Powerful arc extinguishing characteristics
4. Application
1. laptop
2. Digital camera
3. mobile phone
4. Printer
5. DVD player
6. Portable electronics
7. Gaming system
8. LCD Monitor
9. scanner

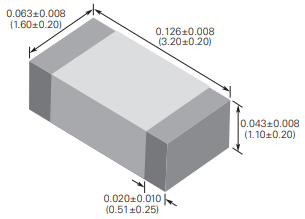

5. Product Size
