1. Description
The 100324QC is a hex translator, designed to convert TTL logic levels to 100K ECL logic levels. The inputs are compatible with standard or Schottky TTL. A common Enable (E), when LOW, holds all inverting outputs HIGH and holds all true outputs LOW. The differential outputs allow each circuit to be used as an inverting/non-inverting translator, or as a differential line driver. The output levels are voltage compensated over the full −4.2V to −5.7V range. When the circuit is used in the differential mode, the 100324, due to its high common mode rejection, overcomes voltage gradients between the TTL and ECL ground systems. The VEE and VTTL power may be applied in either order. The 100324 is pin and function compatible with the 100124 with similar AC performance, but features power dissipation roughly half of the 100124 to ease system cooling requirements.
2. Features
1. Pin/function compatible with 100124
2. Meets 100124 AC specifications
3. 50% power reduction of the 100124
4. Differential outputs
5. 2000V ESD protection
6. −4.2V to −5.7V operating range
7. Available to MIL-STD-883
8. Available to industrial grade temperature range
3. Pin configuration

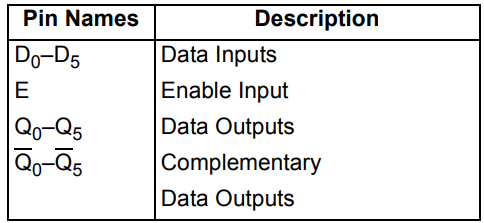

4. Pin Description
