1. Describe
100325QC is a hex converter for converting F100K logic level to TTL logic level. Differential inputs allow each circuit to function as inverting, non-inverting or differential recipient. An internal reference voltage generator provides VBB for single-ended operation, or for Schmitt trigger application. All inputs have 50kΩ pull-down resistors. When the input is not connected or both The potential output will go low. When used in single-ended operation, the apparent input The threshold of the true input is 20mV to 40mV (positive) higher than the threshold of the complementary input. This VEE and VTTL power can be applied in either order.
2. Feature
1. 100125 compatible pin/function
2. Meets 100125 AC Specifications
3. 100125 Power reduced by 50%
4. Differential input with built-in offset
5. Standard FAST output
6. 2000V ESD protection
7. -4.2V to -5.7V operating range
8. Suitable for industrial temperature range
3. Pin configuration

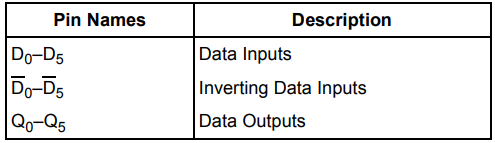

4. Pin Description
