1. Describe
100ELT22M is a TTL to differential PECL converter Use a single +5V supply. The two outputs of the differential pair should terminate at 50Ω to VCC - 2.0V, even when only one output is used. if A pair of outputs is not used, both outputs can be left on (not terminated). The 100 series is temperature compensated.
2. Feature
1. Typical propagation delay of 300 ps
2. <100 ps between outputs
3. Maximum ICC 30 mA
4. Fairchild MSOP-8 package is a drop-in replacement on TSSOP-8
5. Flow through pinout
6. Meets or exceeds JEDEC specification EIA/JESD78 IC Latch Test
7. Humidity Sensitivity Level 1
8. ESD performance:
- Human body model > 2000V
- Machine Model > 200V
3. Pin configuration
3. Pin Description

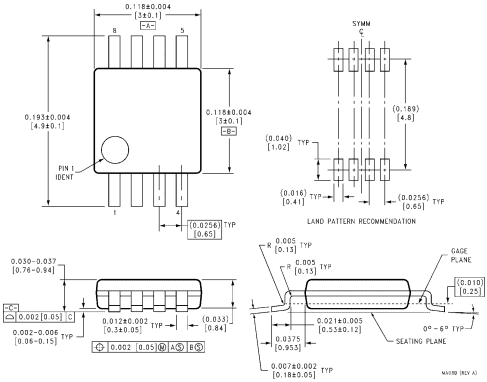

4. Packaging overview
