1. Describe
This data sheet provides information about ultra-small, axial Lead mounted rectifier for general low power applications.
2. Feature
1. Shipped in plastic bags, 1000 pcs per bag
2. Available tapes, 5000 per reel, by adding "RL" suffix to Part Number
3. Provide fan-folded packaging, 3000 pcs per box, add "FF" Suffix of part number
4. Provide lead-free packaging
3. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 0.4 gram (approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds, 1/16 in. from case
5. Polarity: Cathode Indicated by Polarity Band

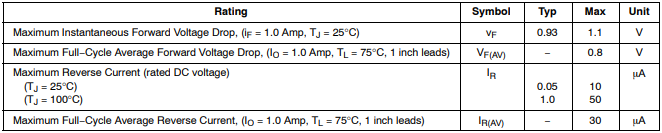

4. Electrical characteristics

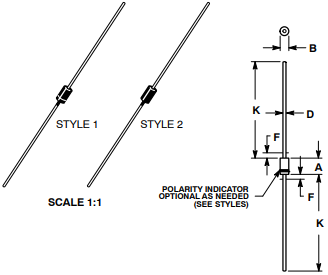

5. Package Size
