1. Features
1. Fast Switching Speed
2. General Purpose Rectification
3. Silicon Epitaxial Planar Construction
4. Lead-Free Finish; RoHS Compliant
2. Mechanical Data
1. Case: DO-35
2. Case Material: Glass: UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Leads: Solderable per MIL-STD-202, Method 208
5. Terminals: Finish ⎯ Sn96.5Ag3.5. Solderable per MIL-STD202, Method 208
6. Polarity: Cathode Band
7. Marking: Type Number
8. Weight: 0.13 grams (approximate)

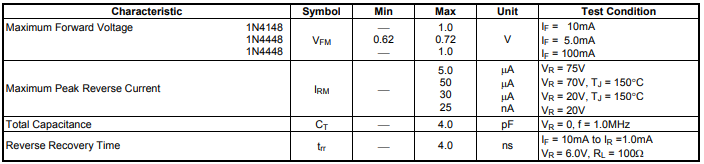

3. Electrical Characteristics

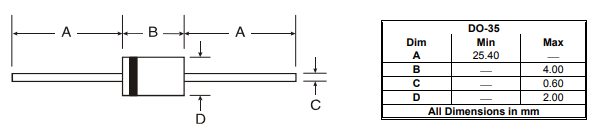

4. Package Outline Dimensions
