1. FEATURES
1. Silicon epitaxial planar diode
2. Electrically equivalent diodes: 1N4148 - 1N914
2. APPLICATIONS
1. Extreme fast switches
3. MECHANICAL DATA
1. Weight: approx. 105 mg
2. Cathode band color: black
3. Packaging codes / options:
- TR/10K per 13" reel (52 mm tape), 50K/box
- TAP/10K per ammopack (52 mm tape), 50K/box

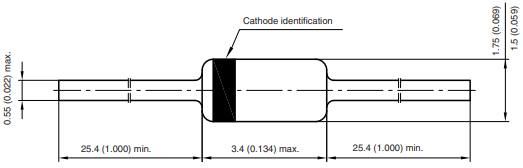

4. Package Size

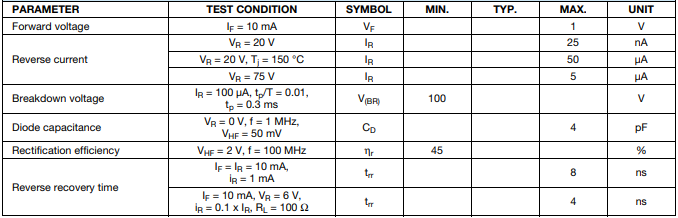

5. Electrical characteristics
