1. Description
The Microchip Technology Inc. 24LC02BT-I/OT is a 2-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data.
2. Features
1. Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices
2. Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1 µA, maximum (I-temp.)
3. 2-Wire Serial Interface, I2C Compatible
4. Schmitt Trigger Inputs for Noise Suppression
5. Output Slope Control to Eliminate Ground Bounce
6. 100 kHz, 400 kHz and 1 MHz Compatibility
7. Page Write Time: 5 ms, Maximum
8. Self-Timed Erase/Write Cycle
9. 8-Byte Page Write Buffer
10. Hardware Write-Protect
11. ESD Protection >4,000V
12. More than 1 Million Erase/Write Cycles
13. Data Retention >200 Years
14. Factory Programming Available
15. RoHS Compliant
16. Temperature Ranges:
- Industrial (I): -40°C to +85°C
- Extended (E): -40°C to +125°C
17. Automotive AEC-Q100 Qualified
3. Package Types

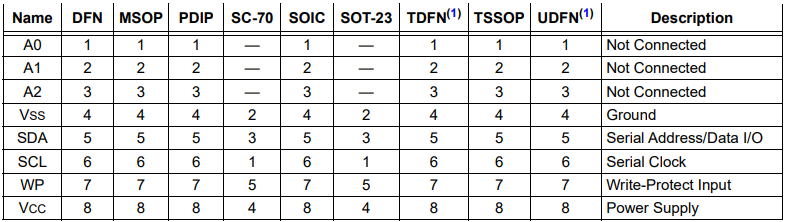

4. Pin function table
5. Package overview
