1. FEATURES
1. Standard 5.0mm x 3.2mm Seam Weld Package
2. Fundamental Crystal Design
3. Frequency Range 6.76438 – 54MHz
4. Frequency Tolerance, ±30ppm Standard
5. Frequency Stability, ±30ppm Standard
6. Operating Temperature to -40°C to +85°C
7. Stable Frequency Over Temperature and Drive Level
8. Tape & Reel Packaging Standard, EIA-481
9. RoHS/Green Compliant
2. APPLICATIONS
Model 405 is a low cost quartz resonator used in a wide range of commercial applications including WLAN/WiMax/WiFi, A/V, Bluetooth, ZigBee and USB interfaces, notebooks, computer peripherals and portable equipment.

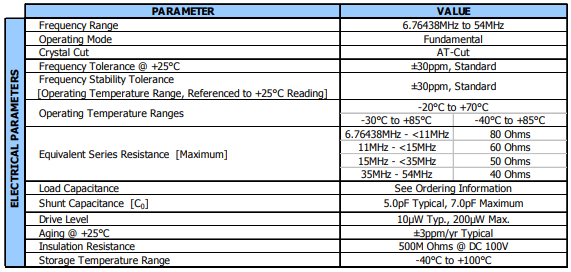

3. ELECTRICAL CHARACTERISTICS

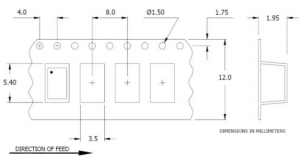

4. PACKAGING INFORMATION
