1. Description
1. This electronic component is designed and manufactured for use in general electronic equipment.
2. Würth Elektronik must be required to obtain written approval (following the PPAP procedure) before integrating the component into any device. Military industry, aerospace, aviation, nuclear control, submarine, transportation (car control, train control, Ship control), traffic signal, disaster prevention, medical treatment, public information network and other fields with high security and reliability requirements Special needs and/or if there is a possibility of direct damage or personal injury
3. Electronic components that will be used in safety-critical or high-reliability applications should be pre-evaluated by the customer
4. The components are designed and manufactured to be used within the values specified in the data sheet. If used and operating conditions If the specifications in the data sheet are not met, the wire insulation may be damaged or dissolved.
5. Do not drop or hit the module, otherwise the module may be damaged.
6. Würth Elektronik products comply with international standards, which are listed in each product reliability report. Wurth Elektronik does not guarantee any customer-qualified product characteristics that exceed Würth Elektroniks specifications, their effectiveness and sustainability over time.
7. The suitability of the customer-specific product and the responsibility for its use in the customer-specific design are always Customer's authority. All technical specifications of standard products also apply to customer-specific products.

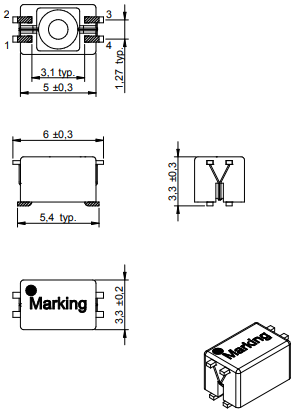

2. Dimensions

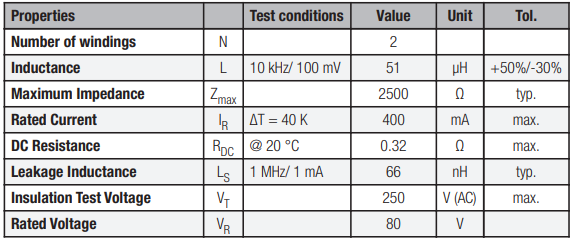

3. Electrical Properties
