1. description
The 74HCT245PW,118 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2. Features and benefits
1. Complies with JEDEC standard JESD7A
2. Input levels:
- For 74HC245: CMOS level
- For 74HCT245: TTL level
3. Octal bidirectional bus interface
4. Non-inverting 3-state outputs
5. ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
6. Multiple package options
7. Specified from -40 °C to +85 °C and from -40 °C to +125 °C
3. Pinning information

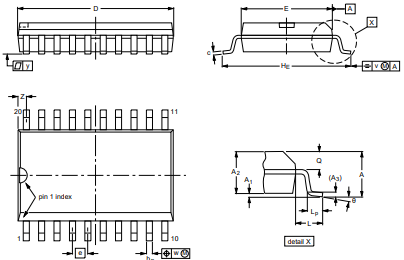

4. Package outline
