1. Describe
74LVC07AD,118 is a hexadecimal buffer with open-drain output. The input can be 3.3 V or 5 V equipment. This feature allows these devices to be used as converters for mixing 3.3 V and 5 V environment. Schmitt trigger action on all inputs allows the circuit to tolerate slower input rise and fall times.
2. Feature
1. 5 V tolerant input and output (open drain) for interfacing with 5 V logic
2. Wide supply voltage range from 1.2 V to 5.5 V
3. CMOS low power consumption
4. TTL level direct interface
5. 5.5 V overvoltage tolerance input
6. Meet the JEDEC standard:
- JESD8-7A (1.65V to 1.95V)
- JESD8-5A (2.3V to 2.7V)
- JESD8-C/JESD36 (2.7V to 3.6V)
7. ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-B exceeds 200 V
- CDM JESD22-C101E exceeds 1000 V
8. The specified range is -40 °C to +85 °C and -40 °C to +125 °C
3. Pin configuration

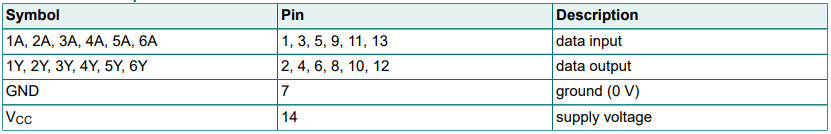

4. Pin description

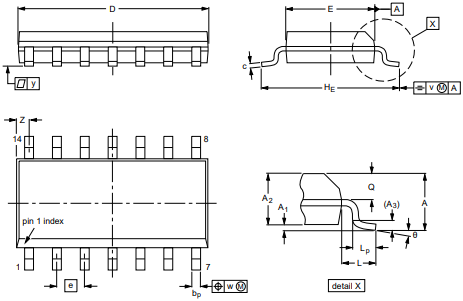

5. Package overview
