1. Describe
The 74LVC4245APW,118 is an octal dual-supply translation transceiver with tri-state bus compatible outputs in both transmit and receive directions. It is designed to interface 3 V and 5 V buses in mixed 3 V and 5 V power supply environments. The device has an output enable input (OE) and a transmit/receive input (DIR) for direction control. A high level on OE causes the output to assume High-impedance off state, effectively isolates the bus. In suspend mode, when either supply is zero, there is no current path between the supplies. VCCA ≥ VCCB, except suspend mode. Schmitt trigger action on all inputs allows the circuit to tolerate slower input rise and fall times.
2. Features
1. 5 V tolerant input/output for interfacing with 5 V logic
2. Wide supply voltage range:
- 3 V bus (VCC(B)): 1.5 V to 3.6 V
- 5 V bus (VCC(A)): 1.5 V to 5.5 V
3. CMOS low power consumption
4. 3.3 V TTL interface capability
5. 5.5 V overvoltage tolerant control input
6. High impedance at VCC(A) = 0 V
7. Compliant with JEDEC Standard Number. JESD8B/JESD36
8. Latch-up performance meets JESD78 Class 1 requirements
9. ESD Protection:
- HBM JESD22-A114F over 2000 V
- MM JESD22-A115-A over 200 V
10. Multiple packaging options
11. Specified from -40 °C to +85 °C and -40 °C to +125 °C
3. Pin configuration

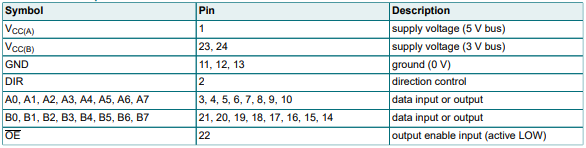

4. Pin Description
