1. Description

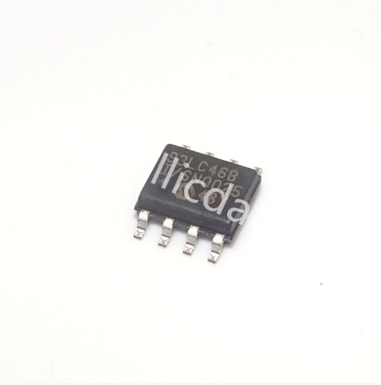

The Microchip Technology Inc. 93LC46BT/SN devices are 1Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA46C, 93LC46C or 93C46C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93AA46A, 93LC46A or 93C46A devices are available, while the 93AA46B, 93LC46B and 93C46B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for lowpower, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.
2. Features
1. Low-Power CMOS Technology
2. ORG Pin to Select Word Size for ‘46C’ Version
3. 128 x 8-bit Organization ‘A’ Devices (no ORG)
4. 64 x 16-bit Organization ‘B’ Devices (no ORG)
5. Self-Timed Erase/Write Cycles (including Auto-Erase)
6. Automatic Erase All (ERAL) Before Write All (WRAL)
7. Power-On/Off Data Protection Circuitry
8. Industry Standard 3-Wire Serial I/O
9. Device Status Signal (Ready/Busy)
10. Sequential Read Function
11. 1,000,000 Erase/Write Cycles
12. Data Retention > 200 Years
13. RoHS Compliant
14. Temperature Ranges Supported:
- Industrial (I) -40°C to +85°C
- Automotive (E) -40°C to +125°C
3. Package Types
4. Pin Function Table

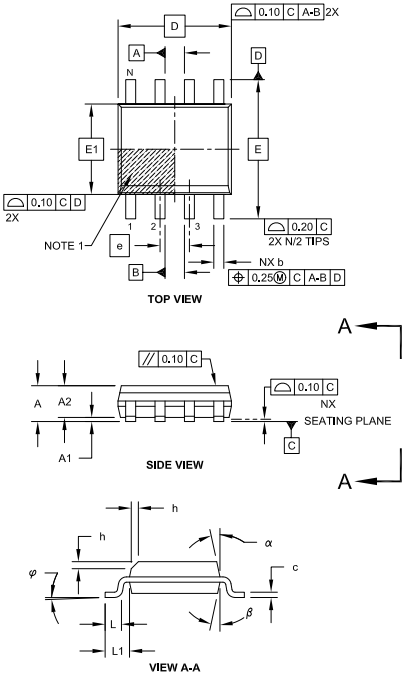

5. Packaging Information
