1. FEATURES
1. Optimized for energy saving wearables, and IoT applications
2. Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR
3. 0.5 mm max height ideally suited for height constrained designs
4. Seam sealed for longterm reliability
2. APPLICATIONS
1. Wearables
2. Internet of Things (IoT)
3. Bluetooth/Bluetooth Low Energy (BLE)
4. Wireless modules
5. Machine-to-machine (M2M) connectivity
6. Ultra-low power MCU
7. Near Field Communication (NFC)
8. ISM Band

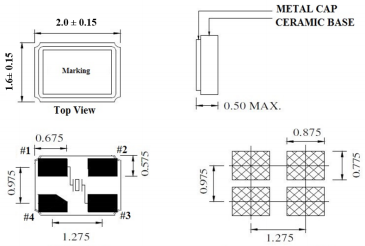

3. MECHANICAL DIMENSIONS

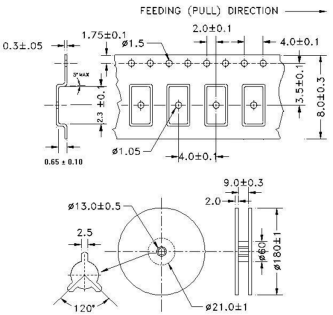

4. Tape and reel
