1. DESCRIPTION
The ADL5545ARKZ-R7 is a single-ended RF/IF gain block amplifier that provides broadband operation from 30 MHz to 6 GHz. The ADL5545 provides over 36 dBm of OIP3 using only 56 mA from a 5 V supply. The ADL5545 provides a gain of 24 dB, which is stable over frequency, temperature, power supply, and from device to device. The amplifier is offered in the industry-standard SOT-89 package and is internally matched to 50 Ω at the input and output, making the ADL5545 very easy to implement in a wide variety of applications. The only external components required are the input/output ac coupling capacitors, power supply decoupling capacitors, and dc bias inductor. The ADL5545 is fabricated on an InGaP HBT process and has a high ESD rating of ±1.5 kV (Class 1C). The ADL5545 is also fully specified for operation across the wide temperature range of −40°C to +105°C. A fully populated RoHS-compliant evaluation board is available.
2. FEATURES
1. Fixed gain of 24.1 dB
2. Broadband operation from 30 MHz to 6 GHz
3. Input/output internally matched to 50 Ω
4. Integrated bias control circuit
- OIP3 of 36.4 dBm at 900 MHz
- P1dB of 18.1 dBm at 900 MHz
5. Noise figure of 2.9 dB at 900 MHz Single 5 V power supply
6. Low quiescent current of 56 mA
7. Wide operating temperature range of −40°C to +105°C
8. Thermally efficient SOT-89 package
9. ESD rating of ±1.5 kV (Class 1C)
3. PIN CONFIGURATION

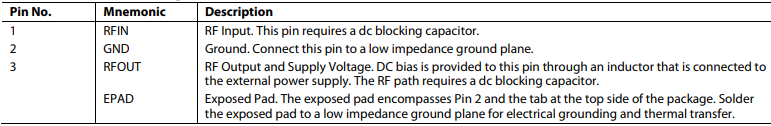

4. Pin Function Descriptions
5. Tiny Part Number Cross Reference
| Package Marking | Part Number | Package Marking | Part Number | ||
| 0 | ADG3241 | 3C | AD1583 | ||
| 1 | ADG3231 | 4A | AD1584 | ||
| 2 | ADG859 | 4B | AD1584 | ||
| 3 | ADG859 | 4C | AD1584 | ||
| 4 | ADG859 | 5A | AD1585 | ||
| 5 | AD8317 | 5B | AD1585 | ||
| 6 | AD8319 | 5C | AD1585 | ||
| 7 | ADL5315 | 9J | ADM809 | ||
| 8 | ADL5350 | 9L | ADM809 | ||
| 9 | AD45085 | 9M | ADM809 | ||
| OA | AD1580 | 9R | ADM809 | ||
| OB | AD1580 | 9S | ADM809 | ||
| OC | AD1580 | 9T | ADM809 | ||
| OD | AD45085Z | 9Z | ADM809 | ||
| OE | AD8353 | A00 | AD8607 | ||
| OF | AD8314 | A01 | AD8697 | ||
| OG | AD8354 | A02 | AD8698 | ||
| OH | AD8361 | A03 | AD8591 | ||
| OJ | AD8315 | A05 | AD8652 | ||
| OK | ADA4310-1 | A06 | AD8629 | ||
| OL | ADA4310-1 | A07 | AD8641 | ||
| ON | ADL5322 | A08 | AD8675 | ||
| OP | ADL5322 | A09 | AD8553 | ||
| OQ | ADL5323 | A0A | AD8642 | ||
| OR | ADL5323 | A0B | OP282 | ||
| OS | ADL5530 | A0C | AD8538 | ||
| OT | ADL5530 | A0D | AD8655 | ||
| 2A | AD1582 | A0E | AD8677 | ||
| 2B | AD1582 | A0F | AD8500 | ||
| 2C | AD1582 | A0G | AD8607 | ||
| 3A | AD1583 | A0H | AD8515 | ||
| 3B | AD1583 | A0J | OP162 | ||
