1. DESCRIPTION
The ADR434BRZ series is a family of XFET® voltage references featuring low noise, high accuracy, and low temperature drift performance. Using Analog Devices, Inc., temperature drift curvature correction and extra implanted junction FET (XFET) technology, voltage change vs. temperature nonlinearity in the ADR434BRZ is minimized. The XFET references operate at lower current (800 µA) and lower supply voltage headroom (2 V) than buried Zener references. Buried Zener references require more than 5 V of headroom for operation. The ADR430/ADR431/ADR433/ADR434/ADR435 XFET references are low noise solutions for 5 V systems. The ADR430/ADR431/ADR433/ADR434/ADR435 family has the capability to source up to 30 mA of output current and sink up to −20 mA. It also comes with a trim terminal to adjust the output voltage over a ±0.5% range without compromising performance. The ADR430/ADR431/ADR433/ADR434/ADR435 are available in 8-lead MSOP and 8-lead narrow SOIC packages. All versions are specified over the extended industrial temperature range of −40°C to +125°C.
2. FEATURES
1. Low noise (0.1 Hz to 10.0 Hz): 3.5 µV p-p at 2.500 V output
2. No external capacitor required
3. Low temperature coefficient
- A grade: 10 ppm/°C maximum
- B grade: 3 ppm/°C maximum
4. Load regulation: 15 ppm/mA
5. Line regulation: 20 ppm/V
6. Wide operating range
- ADR430: 4.1 V to 18 V
- ADR431: 4.5 V to 18 V
- ADR433: 5.0 V to 18 V
- ADR434: 6.1 V to 18 V
- ADR435: 7.0 V to 18 V
7. High output source and sink current: 30 mA and −20 mA
8. Wide temperature range: −40°C to +125°C
3. APPLICATIONS
1. Precision data acquisition systems
2. High resolution data converters
3. Medical instruments
4. Industrial process control systems
5. Optical control circuits
6. Precision instruments
4. PIN CONFIGURATIONS
5. Pin Function Descriptions

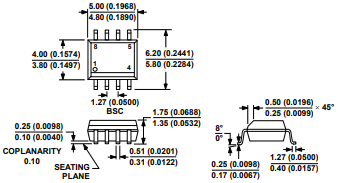

6. OUTLINE DIMENSIONS
