1. Description
The ADS7953QDBTRQ1 device family consists of multichannel 8-bit, 10-bit and 12-bit analog-to-digital converters (ADCs). The devices include a capacitorbased successive approximation register (SAR) ADC with inherent sample and hold. Multiple features and great performance makes the ADS79xx-Q1 device useful for wide variety of applications where multiple channels should be monitored. The ADS79xx-Q1 device works on a wide analog supply range from 2.7 V to 5.25 V. These devices are suitable for battery-powered and isolated power- supply applications because of very-low power consumption. The 4- and 8-channel devices are available in 30-pin TSSOP package. The 12- and 16-channel devices are available in 38-pin TSSOP package.
2. Features
1. Qualified for Automotive Applications
2. AEC-Q100 Tested with the Following Results:
– Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C4B
3. Product Family:
– 8-, 10-, and 12-Bit Resolution
– 4-, 8-, 12-Channel Devices Share 16-Channel Footprint
4. 1-MHz Sample-Rate Serial Devices
5. Analog Supply Range: 2.7 V to 5.25 V
6. I/O Supply Range: 1.7 V to 5.25 V
7. Two SW-Selectable Unipolar, Input Ranges:
– (0 V to 2.5 V) or (0 V to 5 V)
8. Auto and Manual Modes for Channel Selection
9. Two Programmable Alarm Levels per Channel
10. Four Individually Configurable GPIOs
11. Typical Power Dissipation: 14.5 mW (V(+VA) = 5 V, V(+VBD) = 3 V) at 1 MSPS
12. Power-Down Current (1 μA)
13. 30-Pin and 38-Pin TSSOP Package
3. Applications
1. Automotive Systems
2. Power Supply Monitoring
3. Battery-Powered Systems
4. High-Speed, Data-Acquisition Systems

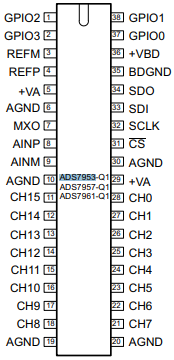

4. Pin configuration

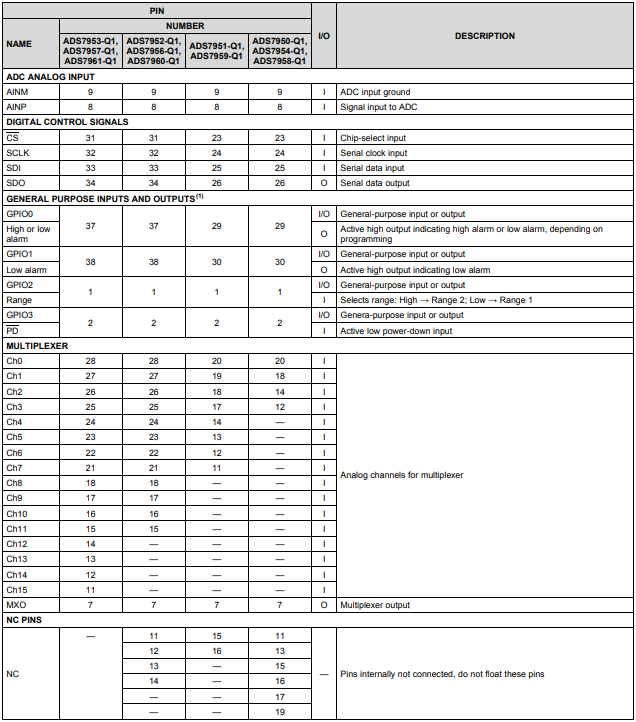

5. Pin Functions

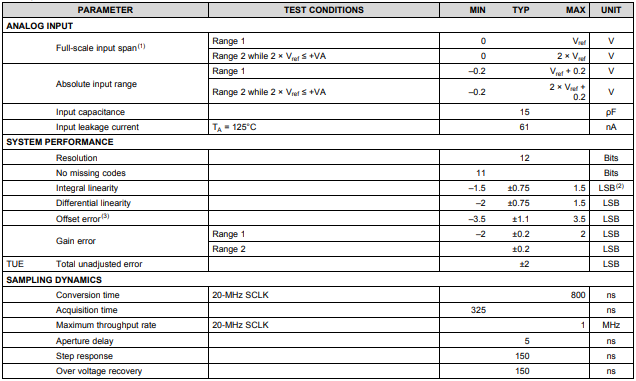

6. Electrical Characteristics

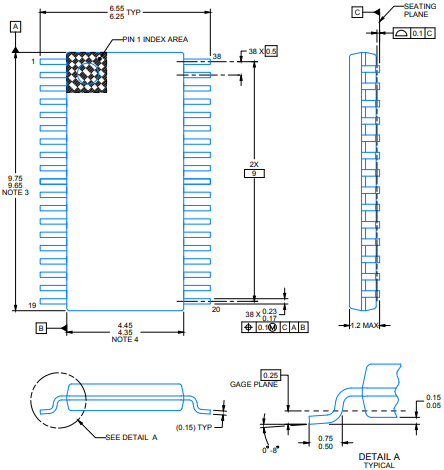

7. PACKAGE OUTLINE
