1. Description
The AP2125N-3.3TRG1 series are 300mA, positive voltage regulator ICs fabricated by CMOS process. Each of these ICs is equipped with a voltage reference, an error amplifier, a resistor network for setting output voltage, a chip enable circuit, a current limit circuit and OTSD (over temperature shut down) circuit to prevent the IC from over current and over temperature. The AP2125 series have features of high ripple rejection, low dropout voltage, low noise, high output voltage accuracy and low current consumption which make them ideal for use in various batterypowered apparatus. The AP2125 have 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.15V and 4.2V fixed voltage versions. These ICs are available in tiny SC-70-5 packages as well as industry standard SOT-23-3 and SOT-23-5 packages.
2. Features
1. Excellent Ripple Rejection: 70dB Typical (1.8V Version)
2. Low Dropout Voltage: 65mV (IOUT=100mA, 3.3V Version)
3. Low Standby Current: 0.01µA Typical
4. Low Quiescent Current: 60µA Typical
5. Extremely Low Noise: 50µVrms Typical
6. Maximum Output Current: 300mA (Min.)
7. High Output Voltage Accuracy: ±2%
8. Compatible with Low ESR Ceramic Capacitor
9. Excellent Line/Load Regulation
10. Totally Lead-Free & Fully RoHS Compliant
11. Halogen and Antimony Free. “Green” Device
3. Applications
1. CDMA/GSM Cellular Handsets
2. Battery-powered Equipments
3. Laptops, Palmtops, Notebook Computers
4. Hand-held Instruments
5. PCMCIA Cards
6. Portable Information Appliances
4. Pin configuration

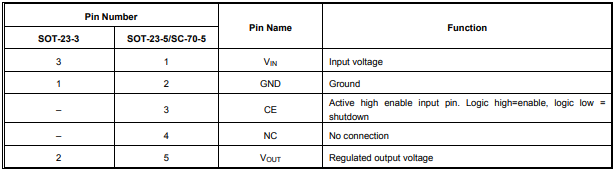

5. Pin Description

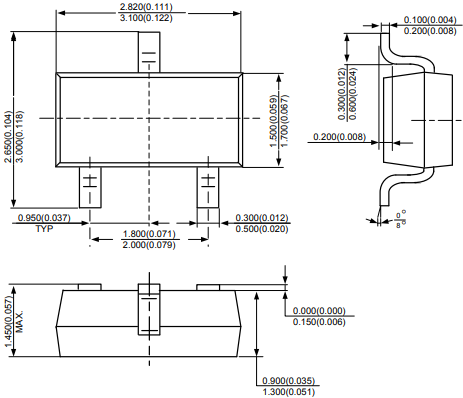

6. Package Outline Dimensions
