1. Description
The AP7380 series is a positive voltage regulator IC. The AP7380 has features of wide input voltage range, high accuracy, low dropout voltage, current limit and ultra-low quiescent current which make it ideal for use in various USB and portable devices and instrument application. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP7380 is available in 1.8V, 3.0V, 3.3V, 3.6V, 4.15V, 4.4V and 5.0V fixed output voltage versions.
2. Features
1. Wide Input Voltage Range: Up to 24V
2. Low Dropout Voltage: VDROP = 500mV @ IOUT = 50mA
3. Low Ground Current
4. High Output Voltage Accuracy
5. Compatible with Low ESR Ceramic Capacitor
6. Excellent Line/Load Regulation
7. Thermal Shutdown Function
8. Totally Lead-Free & Fully RoHS Compliant
9. Halogen and Antimony Free. “Green” Device
3. Applications
1. Battery-powered Equipment
2. Laptop, Palmtops, Notebook Computers
3. Portable Information Appliances
4. Pin configuration

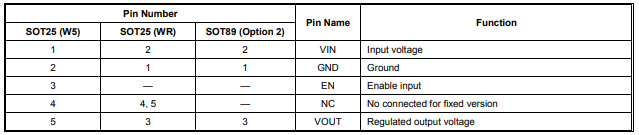

5. Pin Descriptions
