1. Description
The AT25256B-SSHL-T provides 131,072/262,144 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low‑power and low‑voltage operation are essential. The device is available in space-saving 8‑lead SOIC, 8‑lead TSSOP, 8‑pad UDFN and 8‑ball VFBGA packages. All packages operate from 1.8V to 5.5V.
2. Features
1. Serial Peripheral Interface (SPI) Compatible
2. Supports SPI Modes 0 (0,0) and 3 (1,1):
– Data sheet describes mode 0 operation
3. Low-Voltage Operation:
– 1.8V (VCC = 1.8V to 5.5V)
4. Industrial Temperature Range: -40°C to +85°C
5. 20 MHz Clock Rate (5V)
6. 64‑Byte Page Mode
7. Block Write Protection:
– Protect 1/4, 1/2 or entire array
8. Write-Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
9. Self-Timed Write Cycle within 5 ms Maximum
10. ESD Protection > 4,000V
11. High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
12. Green (Lead-free/Halide-free/RoHS Compliant) Package Options
13. Die Sale Options: Wafer Form and Bumped Wafers

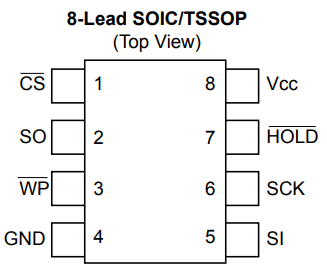

3. Package Types

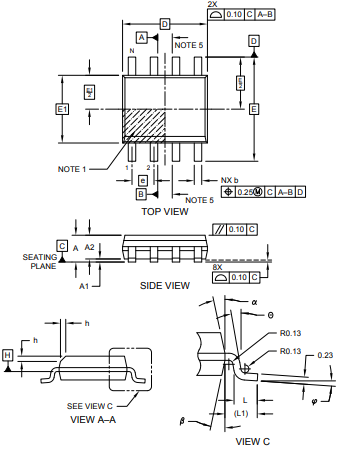

4. Packaging Information
