BC846CMTF

ON Semiconductor
BC846CMTF HongDa Electronics BC846CMTF
  • Manufacturer Part# BC846CMTF
  • Product CategoryDiscrete Semiconductor Products
  • Short DescriptionTRANS NPN 65V 0.1A SOT-23Bipolar (BJT) Transistor ...
  • More DetailN/A
In Stock: 55000

Can ship immediately

Datasheet:
BC846CMTF Datasheet

Technical Details

  • Series:--
  • Packaging:Tape & Reel (TR)
  • FET Type:--
  • Part Status:Active
  • Technology:--
  • Transistor Type:NPN
  • Drain to Source Voltage (Vdss):--
  • Current - Collector (Ic) (Max):100mA
  • Current - Continuous Drain (Id) @ 25°C:--
  • Voltage - Collector Emitter Breakdown (Max):65V
  • Drive Voltage (Max Rds On, Min Rds On):--
  • Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 100mA
  • Rds On (Max) @ Id, Vgs:--
  • Current - Collector Cutoff (Max):15nA (ICBO)
  • Vgs(th) (Max) @ Id:--



  • DC Current Gain (hFE) (Min) @ Ic, Vce:420 @ 2mA, 5V
  • Gate Charge (Qg) (Max) @ Vgs:--
  • Power - Max:310mW
  • Vgs (Max):--
  • Frequency - Transition:300MHz
  • Input Capacitance (Ciss) (Max) @ Vds:--
  • Operating Temperature:150°C (TJ)
  • FET Feature:--
  • Mounting Type:Surface Mount
  • Power Dissipation (Max):--
  • Package / Case:TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package:SOT-23-3
  • Base Part Number:BC846

Description

NPN Epitaxial Silicon Transistor


Features

   1. Switching and Amplifier Applications

   2. Suitable for Automatic Insertion in Thick and Thin-film Circuits

   3. Low Noise: BC850

   4. Complement to BC856, BC857, BC858, BC859, and BC860

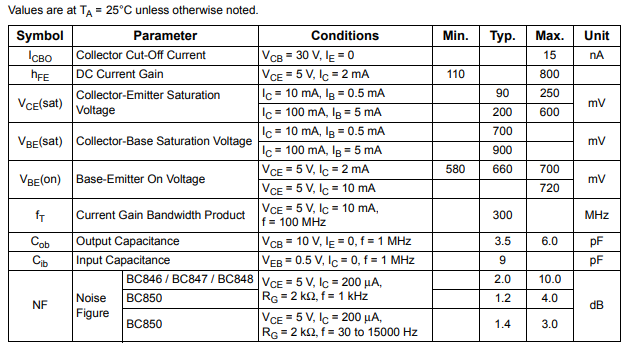

Electrical Characteristics
