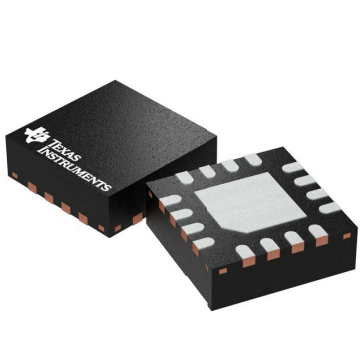

1. Description
The BQ24074RGTR series of devices are integrated Li-Ion linear chargers and system power path management devices targeted at space-limited portable applications. The devices operate from either a USB port or an AC adapter and support charge currents up to 1.5 A. The input voltage range with input overvoltage protection supports unregulated adapters. The USB input current limit accuracy and start up sequence allow the BQ24074RGTR to meet USB-IF inrush current specifications. Additionally, the input dynamic power management (VIN-DPM) prevents the charger from crashing incorrectly configured USB sources.
The BQ24074RGTR features dynamic power path management (DPPM) that powers the system while simultaneously and independently charging the battery. The DPPM circuit reduces the charge current when the input current limit causes the system output to fall to the DPPM threshold; thus, supplying the system load at all times while monitoring the charge current separately. This feature reduces the number of charge and discharge cycles on the battery, allows for proper charge termination and enables the system to run with a defective or absent battery pack.
2. Features
1. Fully compliant USB charger
– Selectable 100-mA and 500-mA maximum input current
– 100-mA Maximum current limit ensures compliance to USB-IF standard
– Input-based dynamic power management (VINDPM) for protection against poor USB sources
2. 28-V Input Rating with Overvoltage Protection
3. Integrated dynamic power path management (DPPM) function simultaneously and independently powers the system and charges the battery
4. Supports up to 1.5-A charge current with current monitoring output (ISET)
5. Programmable input current limit up to 1.5 A for wall adapters
6. System output tracks battery voltage (bq24072)
7. Programmable termination current (bq24074)
8. Battery disconnect function with SYSOFF input (bq24075, bq24079)
9. Programmable Pre-charge and Fast-charge safety timers
10. Reverse current, short-circuit and thermal protection
11. NTC thermistor input
12. Proprietary start-up sequence limits inrush current
13. Status indication – Charging/done, power good
3. Applications
1. Smart phones
2. Portable media players
3. Portable navigation devices
4. Low-power handheld devices

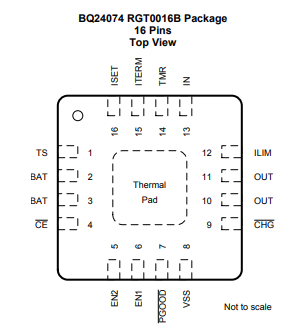

4. Pin Configuration and Functions

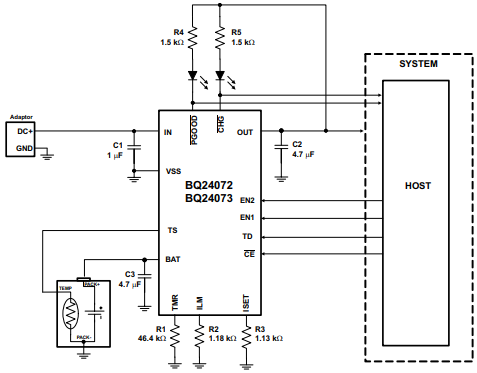

5. Typical Application

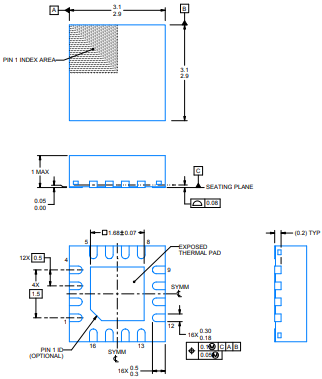

6. PACKAGE OUTLINE
