1. Description
BR24T04-W is a serial EEPROM of I2C BUS Interface Method
2. Features
1. Completely conforming to the world standard I2C BUS.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
2. Other devices than EEPROM can be connected to the same port, saving microcontroller port
3. 1.6V to 5.5V Single Power Source Action most suitable for battery use
4. 1.6V to 5.5V wide limit of action voltage, possible FAST MODE 400kHz action
5. Page Write Mode useful for initial value write at factory shipment
6. Self-timed Programming Cycle
7. Low Current Consumption
8. Prevention of Write Mistake
- Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
9. More than 1 million write cycles
10. More than 40 years data retention
11. Noise filter built In SCL / SDA terminal
12. Initial delivery state FFh

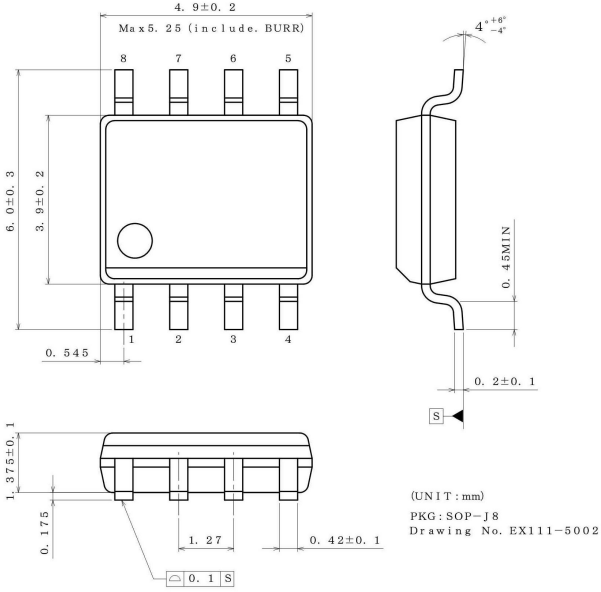

3. Product Size
