1. Feature
1. Flat mold structure
2. Ideal for automated assembly process
3. General medium current
4. Halogen-free can be provided upon request by adding the suffix "-HF"
5. Moisture sensitivity level 1
6. Epoxy resin meets UL 94 V-0 flammability rating
7. Lead-free surface treatment / RoHS compliant
2. Maximum rating
1. Operating junction temperature range: -65°C to +150°C
2. Storage temperature range: -65°C to +150°C
3. Thermal resistance: 625°C/W junction to environment
3. Product Size

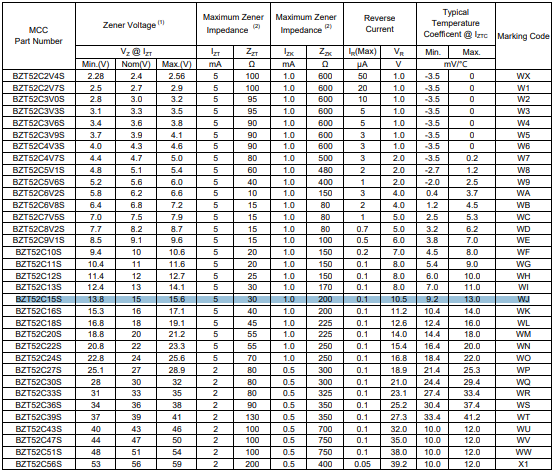

4. Electrical Characteristics
