1. Description
Low-power voltage regulator diodes in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The diodes are available in the normalized E24 ±2 % (BZV55-B) and approximately ±5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
2. Features
1. Non-repetitive peak reverse power dissipation: ≤ 40 W
2. Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
3. Total power dissipation: ≤500 mW Low differential resistance
4. Two tolerance series: ±2 % and ±5 %
5. Small hermetically sealed glass SMD package
3. Applications
1. General regulation functions
4. Package outline

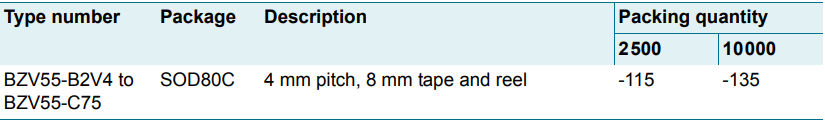

5. Packing information
