1. FEATURES
1. Wide zener voltage range selection: 2.4V to 75V
2. VZ tolerance selection of ± 2%
3. Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC
4. Halogen-free according to IEC 61249-2-21
2. APPLICATIONS
1. Low voltage stabilizers or voltage references
2. Adapters
3. Lighting application
4. On-board DC/DC converter

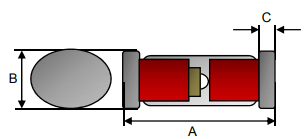

3. Package dimensions
4. MECHANICAL DATA
1. Case: Mini-MELF
2. Terminal: Matte tin plated leads, solderable per J-STD-002
3. Polarity: Indicated by cathode band
4. Weight: 0.03g (approximately)

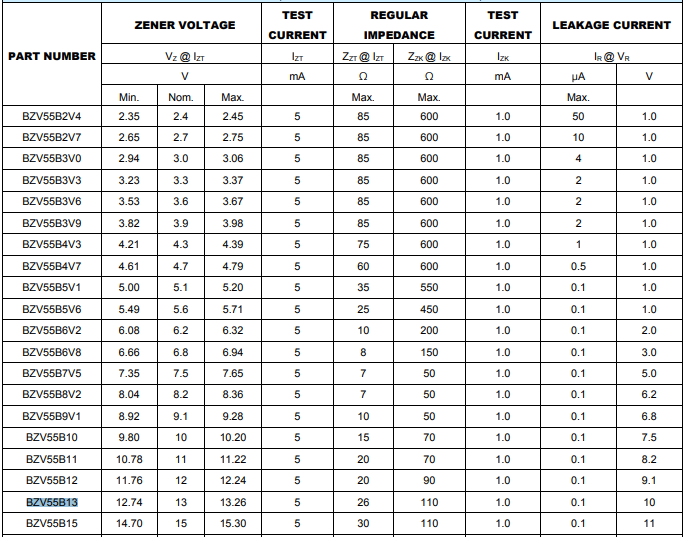

5. Electrical Specifications
