1. Describe

The TI CC256x device is a complete Bluetooth BR/EDR/LE HCI solution that reduces design effort and speeds time to market. CC256x devices based on TI's seventh-  generation Bluetooth core Offers product-proven solutions that are Bluetooth 4.1 compliant. When combined with a microcontroller unit (MCU), this HCI device delivers best-in-class RF performance with approximately 2x the range of other pure Bluetooth LE solutions. In addition, TI's power management hardware and software Algorithms significantly reduce power consumption in all common Bluetooth BR/EDR/LE modes. TI's dual-mode Bluetooth stack software is certified for free integration with TI's MSP430 and ARM Cortex-M3 and Cortex-M4 MCUs. Other MPUs are supported by TI's third parties. Additional software packages support the iPod® (MFi) protocol.

2. Feature

    1. TI's single-chip Bluetooth solution with Bluetooth Basic Rate (BR), Enhanced Data Rate (EDR), and Low Energy (LE) support; available in two variants:

        – Dual Mode Bluetooth CC2564 Controller

        – Bluetooth CC2560 Controller

    2. CC2564 Bluetooth 4.1 Controller Subsystem Qualified (QDID 58852); HCI Layer Compliant

    3. Highly optimized for low-cost designs:

        – Single-ended 50Ω RF interface

        – Package size: 76 terminals, 0.6mm pitch, 8mm x 8mm mrQFN

     4. BR/EDR features include:

         – Up to 7 active devices

         – Scatternet: Up to 3 Piconets at the same time, 1 as master and 2 as slave

         – Up to 2 SCO links on the same Piconet

         – Supports all speech air coding – Continuously Variable Slope Delta (CVSD), A-Law, μ-Law, and Transparent (uncoded)

         – The CC2560B/CC2564B devices offer a assisted mode (WBS) profile for HFP 1.6 wideband speech or an A2DP profile to reduce host processing and power

         – Support for multiple Bluetooth profiles for enhanced quality of service

     5. LE features include:

         – Supports up to 10 (CC2564B) connections

         – Multiple sniffing instances are tightly coupled to achieve lowest power consumption

         – The independent buffering of the LE allows large No multiple connections Affects BR/EDR performance.

         – Built-in coexistence and prioritizatio For BR/EDR and LE

     6. Best-in-class Bluetooth (RF) performance (TX power, RX sensitivity, blocking)

         – Class 1 TX power up to +10 dBm

         – –95 dbm typical RX sensitivity

         – Internal temperature detection and Compensated to ensure minimal changes RF performance over temperature, no Requires external calibration

         – Improved Adaptive Frequency Hopping (AFH) Algorithm with minimal adaptation time

         – Provides longer range, including 2x range Outperforms other LE-only solutions

    7. Advanced power management for expansion Battery life and ease of design

        – On-chip power management, including direct connected to battery

        – low power active, standby, and scan for bluetooth patterns

        – Shutdown and sleep modes to minimize power consumption consume

    8. Physical interface:

        – UART interface supports maximum Bluetooth data rate

    9. UART transport layer (H4) maximum 4 Mbps rate

  10. The three-wire UART transport layer (H5) has 4 Mbps maximum rate (CC2560B and CC2564B only)

        – Fully programmable digital PCM-I2S codec interface

  11. Flexibility for easy stack integration and validation into various microcontrollers such as the MSP430™ and ARM® Cortex®

        – M3 and Cortex®

        – M4 MCU

  13. CC256x Bluetooth Hardware Evaluation Tool: PCB-based application for evaluation Device and Configuration Service Packs

  14. Device pinout compatible with previous pinout device or module

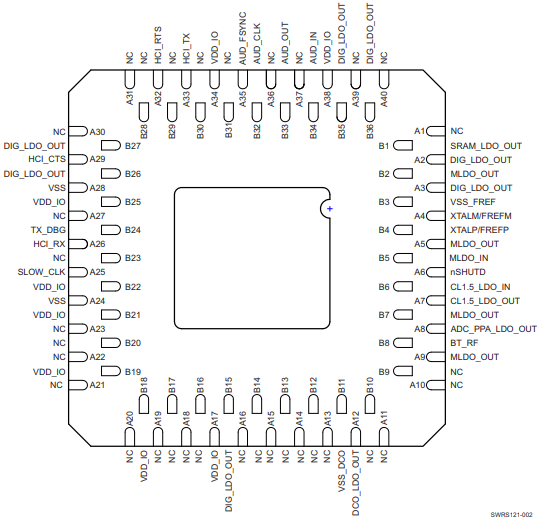

3. Pin configuration

4. Configuration file includes

    1. Serial Port Profile (SPP)

    2. Advanced Audio Distribution Profile (A2DP)

    3. Audio/Video Remote Control Profile (AVRCP)

    4. Hands Free Profile (HFP)

    5. Human Interface Device (HID)

    6. Generic Attribute Profile (GATT)

    7. Multiple Bluetooth Low Energy profiles and services

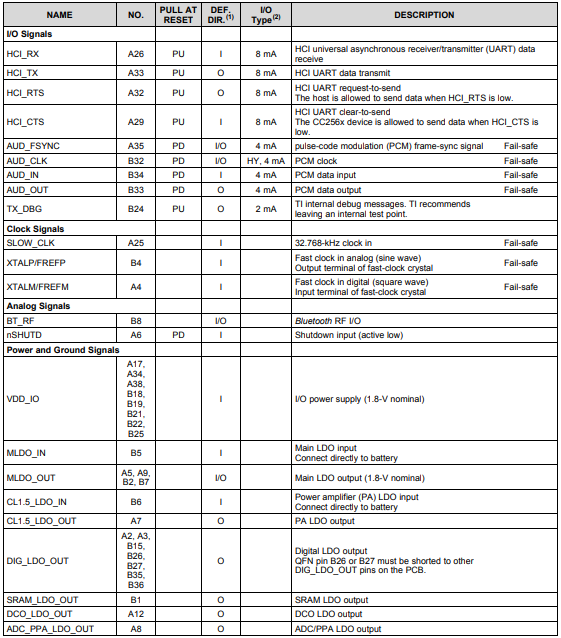

5. Pin Description

6. Application

    1. Mobile phone accessories

    2. Sports and fitness apps

    3. Wireless Audio Solutions

    4. remote control

    5. Toy

    6. Test and Measurement

    7. Industry: Cable replacement

    8. Wireless sensor

    9. Automotive aftermarket

  10. Point of Service (POS)

  11. Health and Wellness
