1. Description
The CNY173TM, CNY17F and MOC810X devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor in a dual in-line package.
2. Features
1. UL recognized (File # E90700)
2. VDE recognized
– Add option V for white package (e.g., CNY17F2VM)
– File #102497
– Add option ‘300’ for black package (e.g., CNY17F2300)
– File #94766
3. Current transfer ratio in select groups
4. High BVCEO—70V minimum (CNY17X/M, CNY17FX/M, MOC8106/7/8)
5. Closely matched current transfer ratio (CTR) minimizes unit-to-unit variation.
6. Very low coupled capacitance along with no chip to pin 6 base connection for minimum noise susceptability (CNY17FX/M, MOC810X)
3. Applications
1. Power supply regulators
2. Digital logic inputs
3. Microprocessor inputs
4. Appliance sensor sy
4. Pin configuration

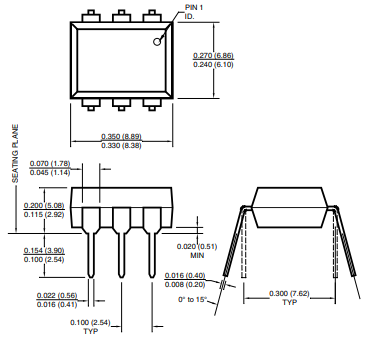

5. Package overview
