1. Describe
This –20 V, 5.5 mΩ NexFET™ power MOSFET is a Designed to minimize losses in power conversion loads Management application of SON 3.3 mm × 3.3 mm package that provides an excellent thermal performance of the size of the device.
2. Feature
1. Ultra-low Qg and Qgd
2. Low thermal resistance
3. Low RDS (on)
4. Halogen free
5. RoHS Compliant
6. Lead-free terminal plating
7. SON 3.3 mm × 3.3 mm plastic package
3. Application
1. DC-DC converter
2. Battery management
3. Load switch
4. Battery protection
4. Pin configuration

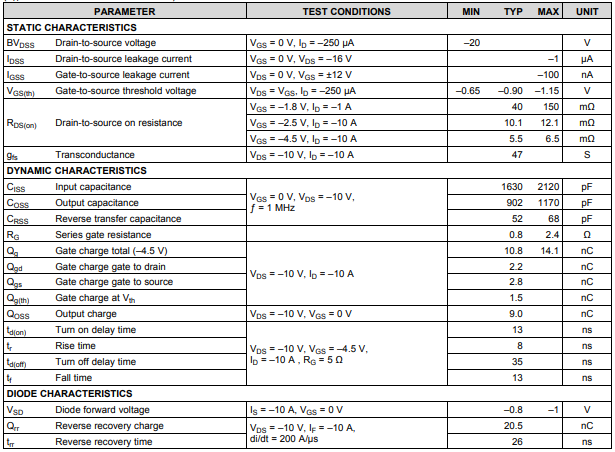

5. Electrical Characteristics
