1. DESCRIPTION
The DAC7611 is a 12-bit digital-to-analog converter (DAC) with guaranteed 12-bit monotonicity performance over the industrial temperature range. It requires a single +5V supply and contains an input shift register, latch, 2.435V reference, DAC, and high speed rail-to-rail output amplifier. For a full-scale step, the output will settle to 1 LSB within 7µs. The device consumes 2.5mW (0.5mA at 5V). The synchronous serial interface is compatible with a wide variety of DSPs and microcontrollers. Clock (CLK), serial data in (SDI), and load strobe (LD) comprise the serial interface. In addition, two control pins provide a chip select (CS) function and an asynchronous clear (CLR) input. The CLR input can be used to ensure that the DAC7611 output is 0V on power-up or as required by the application. The DAC7611 is available in an 8-lead SOIC or 8-pin plastic DIP package and is fully specified over the industrial temperature range of –40°C to +85°C.
2. FEATURES
1. LOW POWER: 2.5mW
2. FAST SETTLING: 7µs to 1 LSB
3. 1mV LSB WITH 4.095V FULL-SCALE RANGE
4. COMPLETE WITH REFERENCE
5. 12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGE
6. ASYNCHRONOUS RESET TO 0V
7. 3-WIRE INTERFACE: Up to 20MHz Clock
8. ALTERNATE SOURCE TO DAC8512
3. APPLICATIONS
1. PROCESS CONTROL
2. DATA ACQUISITION SYSTEMS
3. CLOSED-LOOP SERVO-CONTROL
4. PC PERIPHERALS
5. PORTABLE INSTRUMENTATION
4. Pin configuration

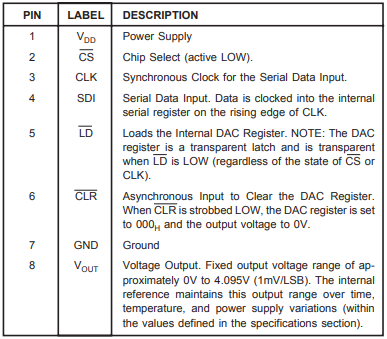

5. Pin Description
