1. Describe
This new generation of MOSFETs is designed to minimize on-states resistance (RDS(ON)) and maintain excellent switching performance, making it ideal for high-efficiency power management applications.
2. Features
1. N MOSFETs
2. Low on-resistance
3. Low input capacitance
4. Fast switching speed
5. Completely lead-free and fully RoHS compliant
6. Halogen and antimony free. "Green" equipment
7. Compliant with AEC-Q101 high reliability standards
3. Application
1. DC-DC converter
2. Power management features
3. Backlight
4. Mechanical data
1. Case: SOT23
2. Housing material: Molded plastic, "green" molding compound; UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Class 1 per J-STD-020
4. Terminals: Finished - Matte Tin annealed on copper lead frame. Method 208 Solderable per MIL-STD-202
5. Weight: 0.008 g (approximate)
5. Pin configuration

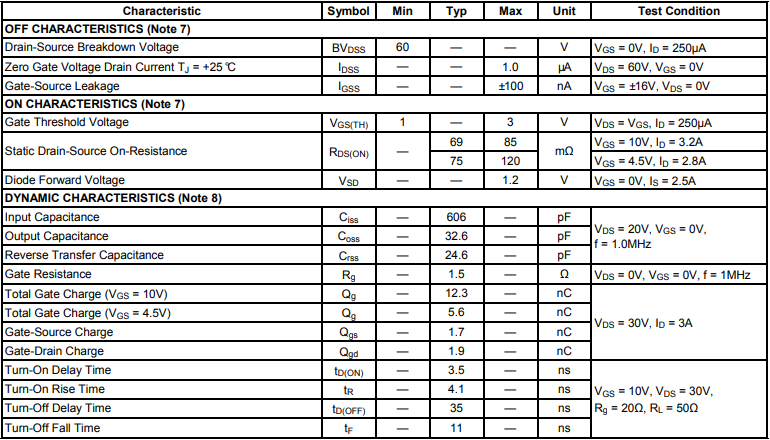

6. Electrical Characteristics

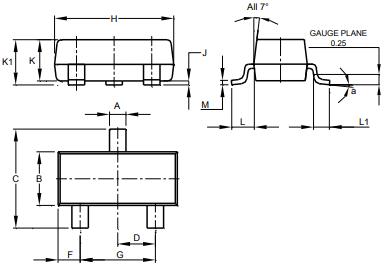

7. Package Outline Dimensions
