1. Description
The ESDA6V1SC6 and ESDAxxSC6 are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient.
2. Features
1. 4 unidirectional ESD protection
2. 400 W peak pulse power (8/20 µs)
3. Benefits
– High ESD protection level: up to 30 kV
– High integration
– Suitable for high density boards
4. Complies with the following standards
– IEC 61000-4-2 level exceed level 4:
– 30 kV (air discharge)
– 30 kV (contact discharge)
5. MIL STD 883E- Method 3015-7: class3B
– human body model
3. Applications
1. Computers
2. Printers
3. Communication systems
4. Cellular phone handsets and accessories
5. Other telephone set
6. Set top boxes

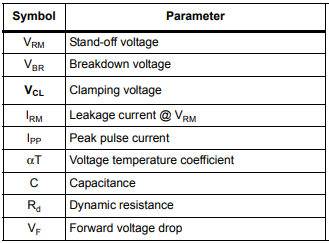

4. Electrical characteristics
5. Product Size
