1. Description
The ESDAVLC8-1BT2Y is a bidirectional singleline TVS diode designed to protect data lines or other I/O ports against ESD transients.
This device is ideal for applications where both printed circuit board space and power absorption capability are required.
2. Features
1. Single-line bidirectional protection
2. Breakdown voltage = 8.5 V min.
3. Very low capacitance = 4.5 pF at 0 V
4. Lead-free packages
5. ECOPACK®2 compliant component
6. AEC-Q101 qualified
3. Benefits
1. Very low capacitance for optimized data integrity
2. Very low reverse current < 50 nA
3. Low PCB space consumption: 0.6 mm2
4. High reliability offered by monolithic integration
4. Complies with the following standards:
1. IEC 61000-4-2 (exceeds level 4)
– 17 kV (air discharge)
– 17 kV (contact discharge)
2. ISO10605: C = 330 pF, R = 330 Ω
– 15 kV (air discharge)
– 8 kV (contact discharge)
3. MIL STD 883G - Method 3015-7: class 3
– HBM (human body model)
5. Functional diagram
6. Applications
Where transient overvoltage protection in ESD sensitive equipment is required, such as:
1. Automotive applications
2. Computers
3. Printers
4. Communication systems
5. Cellular phone handsets and accessories
6. Video equipment

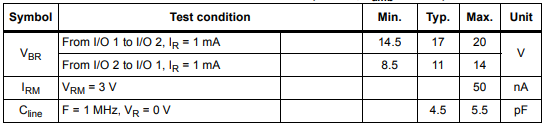

7. Electrical characteristics (values, Tamb = 25 °C)
