1. FEATURES
1. UL recognition file number E54214
2. Ideal for printed circuit boards
3. High surge current capability
4. High case dielectric strength of 1500 VRMS
5. Solder dip 275 °C max. 10 s, per JESD 22-B106
6. Material categorization: for definitions of compliance
2. TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, switching mode power supply, adapter, audio equipment, and home appliances applications.

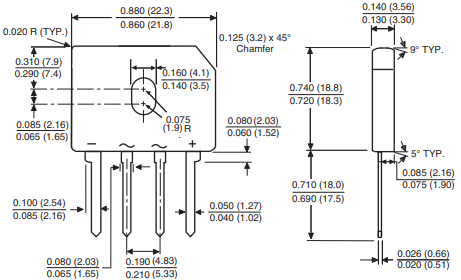

3. MECHANICAL DATA
1. Case: GBU
2. Molding compound meets UL 94 V-0 flammability rating
3. Base P/N-E3 - RoHS-compliant, commercial grade
4. Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
5. Terminals: matte tin plated leads, solderable per
6. J-STD-002 and JESD 22-B102
7. E3 and M3 suffix meet JESD 201 class 1A whisker test
8. Polarity: as marked on body
9. Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
10. Recommended Torque: 5.7 cm-kg (5 inches-lbs)

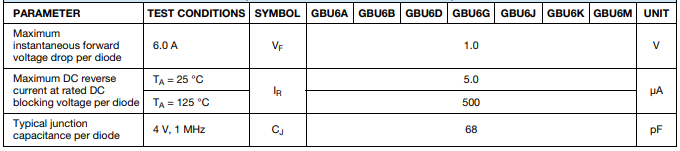

4. ELECTRICAL CHARACTERISTICS

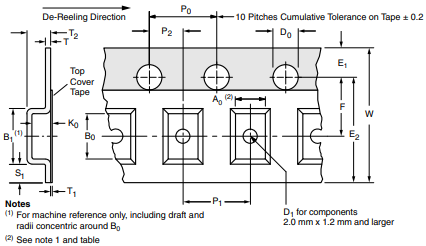

5. SURFACE MOUNT TAPE AND REEL PACKAGING
