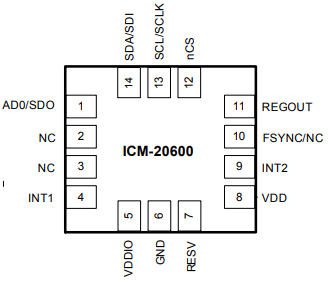

ICM-20600

1. GENERAL DESCRIPTION

The ICM-20600 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 2.5 mm x 3 mm x 0.91 mm (14-pin LGA) package.

   1. High performance specs

       - Gyroscope sensitivity error: ±1%

       - Gyroscope noise: ±4 mdps/√Hz

       - Accelerometer noise: 100 µg/√Hz

   2. Includes 1 KB FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode

   3. EIS FSYNC support

ICM-20600 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 10 MHz.

2. FEATURES

   1. 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps

   2. 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g, and ±16g

   3. User-programmable interrupts

   4. Wake-on-motion interrupt for low power operation of applications processor

   5. 1 KB FIFO buffer enables the applications processor to read the data in bursts

   6. On-Chip 16-bit ADCs and Programmable Filters

   7. Host interface: 10 MHz SPI or 400 kHz Fast Mode I2C

   8. Digital-output temperature sensor

   9. VDD operating range of 1.71 to 3.45V

 10. MEMS structure hermetically sealed and bonded at wafer level

 11. RoHS and Green compliant

3. APPLICATIONS

   1. Smartphones and Tablets

   2. Wearable Sensors

   3. IoT Applications

   4. Motion-based game controllers

   5. 3D remote controls for Internet connected DTVs and set top boxes, 3D mice

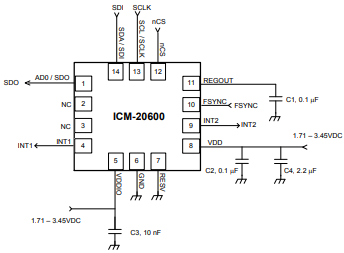

4. TYPICAL OPERATING CIRCUIT

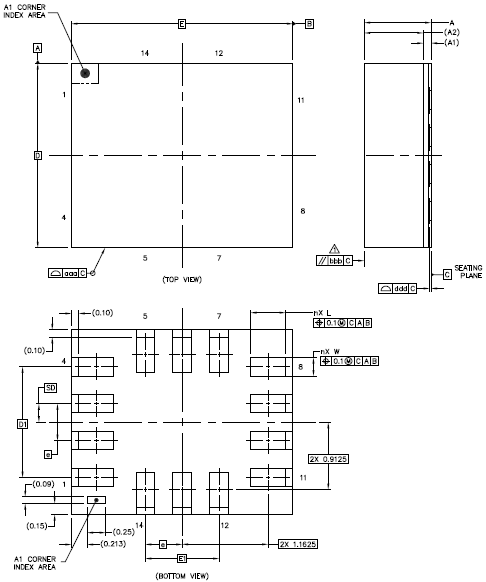

5. PACKAGE DIMENSIONS
