IS25LQ040B-JNLE

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   brenda@hongda-ic.com

1. Description

IS25LQ040B-JNLE/020B/010B/512B/025B (4M/2M/1M/512K/256Kbit) serial flash memory provides a storage solution Simplify the flexibility and performance of the pin count package. ISSI's "Industry Standard Serial Interface" is suitable for the system It has limited space, pins and power. The device is accessed through a 4-wire SPI interface consisting of a serial interface Data input (SI), serial data output (SO), serial clock (SCK) and chip enable (CE#) pins, which are also used as multi-function I/O pins ( See pin description). IS25xQ series flash memory is ideal for code ghosting To RAM, execute in place (XIP) operations and store non-volatile data. The memory array is organized into programmable pages of 256 bytes each. The device supports page programming Among them, 1 to 256 bytes of data can be programmed into the memory by one command. You can erase pages in groups 4 KB sectors, 32 KB blocks, 64 KB blocks and/or entire chip. Uniform sectors and blocks allow larger Provides flexibility for various applications that require reliable data retention. The device supports standard serial peripheral interface (SPI), dual/quad output (SPI), and dual/quad I/O (SPI). The clock frequency of all read modes is up to 104MHz, which can achieve an equivalent clock rate of up to 416MHz (104MHz x 4), which is equivalent to a throughput of 52Mbytes/S. These transfer rates can surpass 16-bit parallel flash memory to allow efficient memory access to XIP (execution in place) operations. The device uses industry-leading non-volatile memory technology and adopts industry-standard lead-free packaging.

2. FEATURES

    1. Industry Standard Serial Interface

        - IS25LQ040B: 4Mbit/512Kbyte

        - IS25LQ020B: 2Mbit/256Kbyte

        - IS25LQ010B: 1Mbit/128Kbyte

        - IS25LQ512B: 512Kbit/64Kbyte

        - IS25LQ025B: 256Kbit/32Kbyte

        - 256-bytes per Programmable Page Standard

        - Standard SPI/Dual/Quad Multi-I/O SPI

         - Supports Serial Flash Discoverable Parameters (SFDP)

    2. High Performance Serial Flash (SPI)

        - 104 MHz SPI/Dual/Quad Multi-I/O SPI

        - 416 MHz equivalent Quad SPI

        - 52MB/S Continuous Data Throughput

        - Supports SPI Modes 0 and 3

        - More than 100,000 erase/program cycles

        - More than 20-year data retention

    3. Efficient Read and Program modes

        - Low Instruction Overhead Operations

        - Continuous data read with Byte Wrap around

        - Allows XIP operations (execute in place)

        - Outperforms X16 Parallel Flash

    4. Flexible & Cost Efficient Memory Architecture

        - Uniform 4 Kbyte Sectors or 32/64 Kbyte Blocks

        - Flexible 4, 32, 64 Kbyte, or Chip Erase

        - Standard Page Program 1 to 256 bytes

        - Program/Erase Suspend and Resume

    5. Low Power with Wide Temp. Ranges

        - Single 2.3V to 3.6V Voltage Supply

        - 10 mA Active Read Current

        - 8 µA Standby Current

        - Deep Power Down

        - Temp Grades:

                    Extended: -40°C to +105°C

                    Auto Grade (A3): -40°C to +125°C

    6. Advanced Security Protection

        - Software and Hardware Write Protection

        - 4x256-Byte dedicated security area with user-lockable bits, (OTP) One Time Programmable Memory

        - 128 bit Unique ID for each device (Call Factory)

    7. Industry Standard Pin-out & Pb-Free Packages1

        - JB = 8-pin SOIC 208mil

        - JN = 8-pin SOIC 150mil

        - JD = 8-pin TSSOP

        - JV = 8-pin VVSOP 150mil

        - JK = 8-contact WSON 6x5mm

        - JU = 8-contact USON 2x3mm

        - KGD (Call Factory)

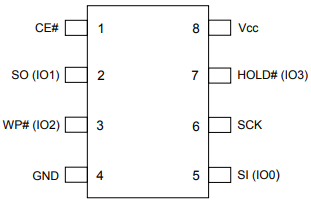

3. PIN CONFIGURATION

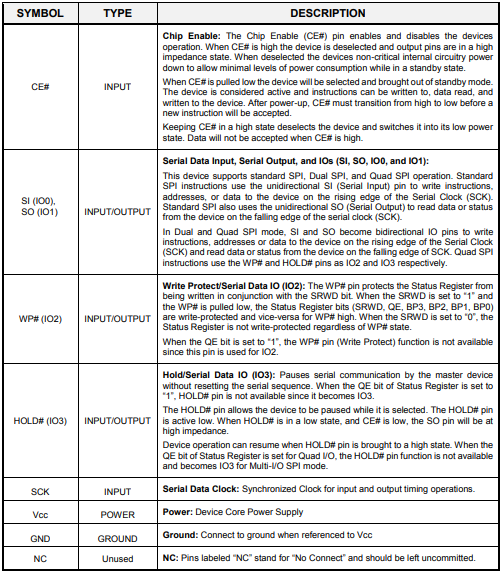

4. PIN DESCRIPTIONS

5. Package overview
