1. Description
The LD29150DT50R is a high current, high accuracy, low-dropout voltage regulator series. These regulators feature 400 mV dropout voltage and very low ground current. Designed for high current loads, these devices are also used in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. Typical applications are in power supply switching post regulation, series power supply for monitors, series power supply for VCRs and TVs, computer systems and battery powered systems.
2. Features
1. Very low dropout voltage (typ. 0.4 at 1.5 A)
2. Guaranteed output current up to 1.5 A
3. Fixed and adjustable output voltage (± 1% at 25 °C)
4. Internal current and thermal limit
5. Logic controlled electronic shutdown available in PPAK

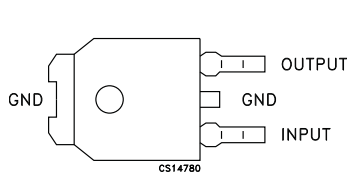

3. Pin configuration

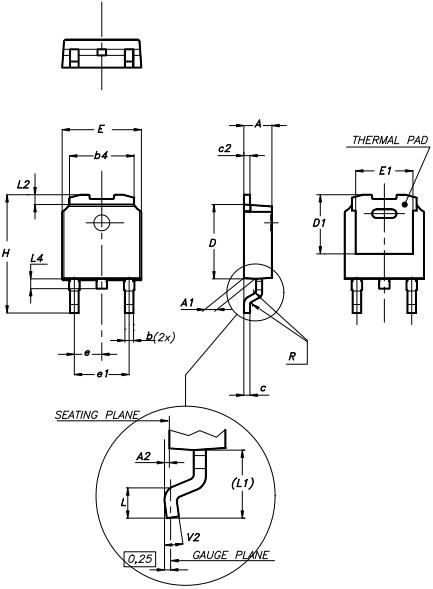

4. Package information
