Description
The LM2596SX-ADJ/NOPB series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixedfrequency oscillator.
The LM2596SX-ADJ/NOPB series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators. Available in a standard 5-pin TO-220 package with several different lead bend options, and a 5-pin TO-263 surface mount package.
Features
1. 3.3-V, 5-V, 12-V, and adjustable output versions
2. Adjustable version output voltage range: 1.2-V to 37-V ±4% maximum over line and load conditions
3. Available in TO-220 and TO-263 packages
4. 3-A output load current
5. Input voltage range up to 40 V
6. Requires only four external components
7. Excellent line and load regulation specifications
8. 150-kHz Fixed-frequency internal oscillator
9. TTL shutdown capability
10. Low power standby mode, IQ, typically 80 μA
11. High efficiency
12. Uses readily available standard inductors
13. Thermal shutdown and current-limit protection
14. Create a custom design using the
Applications
1. Appliances
2. Grid infrastructure
3. EPOS
4. Home theater

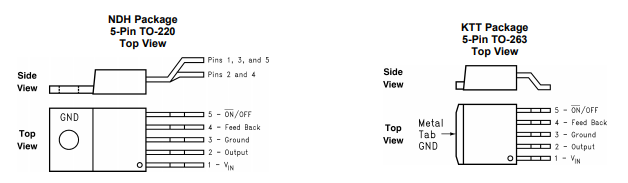

Pin Configuration and Functions
