1. Description
LM393DR device is next The first generation industry standard version LM393 And LM2903 comparator series. These next The first-generation B version comparator has a lower offset Voltage, higher power supply voltage capability, lower power supply Current, lower input bias current, lower extension Delayed and improved 2 kV ESD performance and input Robustness is achieved through dedicated ESD clamps. This LM393B and LM2903B can be directly replaced LM293, LM393 and LM2903, suitable for "A" and "V" achievement. All devices are powered by two independent voltages Comparator designed to operate from one Single power supply, wide voltage range. Quiescent current has nothing to do with the power supply Voltage.
2. Feature
1. New LM393B and LM2903B
2. Improved the specifications of version B
– Maximum rating: up to 38 V
– ESD rating (HBM): 2k V
– Low input offset: 0.37 mV
– Low input bias current: 3.5 nA
– Low supply current: 200 µA per comparator
– 1 microsecond faster response time
– Extended temperature range of LM393B
– Available in tiny 2 x 2mm WSON package
3. Version B is a direct replacement for LM293, LM393 and LM2903, A and V versions
4. Common mode input voltage range includes ground
5. The differential input voltage range is equal to the maximum rated supply voltage: ±38 V
6. Low output saturation voltage
7. Output compatible with TTL, MOS and CMOS
3. Application
1. Vacuum robot
2. Single phase UPS
3. Server power
4. Cordless power tools
5. Wireless infrastructure
6. Application
7. Building automation
8. Factory automation and control
9. motor driven
10. Infotainment and cluster
4. pin configuration

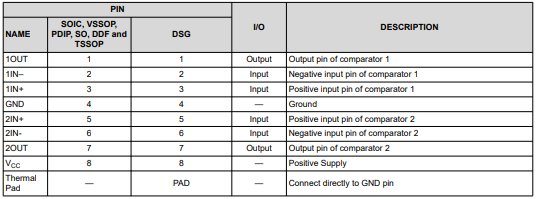

5. Pin function

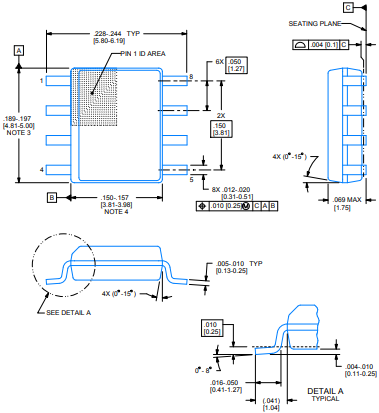

6. Package outline
