1. Description
The LM5085QMYE/NOPB is a high efficiency PFET switching regulator controller that can be used to quickly and easily develop a small, efficient buck regulator for a wide range of applications. This high voltage controller contains a PFET gate driver and a high voltage bias regulator which operates over a wide 4.5-V to 75-V input range. The constant on-time regulation principle requires no loop compensation, simplifies circuit implementation, and results in ultrafast load transient response. The operating frequency remains nearly constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The PFET architecture allows 100% duty cycle operation for a low dropout voltage. Either the RDS(ON) of the PFET or an external sense resistor can be used to sense current for over current detection.
2. Features
1. LM5085-Q1 is an Automotive Grade Product that regulator controller that can be used to quickly and is AEC-Q100 Grade 1 Qualified (–40°C to 125°C easily develop a small, efficient buck regulator for a Operating Junction Temperature)
2. Wide 4.5-V to 75-V Input Voltage Range
3. Adjustable Current Limit Using RDS(ON) or a Current Sense Resistor
4. Programmable Switching Frequency to 1MHz
5. No Loop Compensation Required
6. Ultra-Fast Transient Response
7. Nearly Constant Operating Frequency with Line and Load Variations
8. Adjustable Output Voltage from 1.25 V
9. Precision ±2% Feedback Reference
10. Capable of 100% Duty Cycle Operation
11. Internal Soft-start Timer
12. Integrated High Voltage Bias Regulator
13. Thermal Shutdown
14. Package:
– HVSSOP-8
– VSSOP-8
– WSON-8
3. Pin Configuration

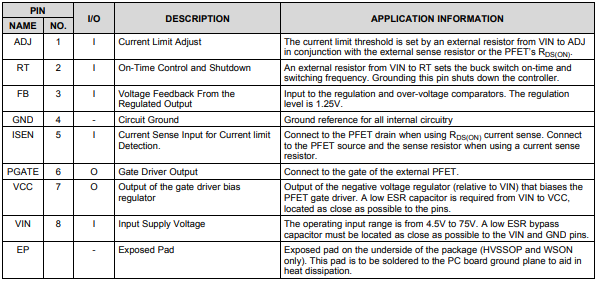

4. Pin Functions
5. Applications
1. Automotive Infotainment
2. Battery/Super Capacitor Chargers
3. LED Drivers
