1. Description
The LMV358IDT family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 µA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
2. Features
1. Operating range from VCC = 2.7 to 6 V
2. Rail-to-rail input and output
3. Extended Vicm (VDD - 0.2 V to VCC + 0.2 V)
4. Low supply current (145 µA)
5. Gain bandwidth product (1 MHz)
6. ESD tolerance (2 kV)
3. Applications
1. Battery powered electronic equipment
2. Personal medical care (glucose meters)
3. Laptops

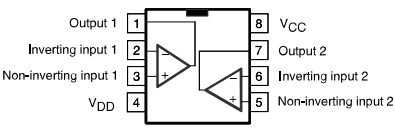

4. Pin configuration
5. package information
