1. Describe
The LTC®3892/LTC3892-1/LTC3892-2 are high performance dual step-down DC/DC switching regulator controllers that drive all N-channel synchronous power MOSFET stages. Power loss and noise are minimized by operating the two controller output stages out of phase. The gate drive voltage is programmable from 5V to 10V to allow the use of logic or standard level FETs and maximize efficiency. An internal switch in the top gate driver eliminates the need for an external bootstrap diode. The wide input supply range of 4.5V to 60V includes a variety of intermediate bus voltages and battery chemistries. The output voltage is adjustable to 99% of VIN. OPTILOOP® compensation allows optimized transient response and loop stability over a wide range of output capacitance and ESR values. The 29µA no-load quiescent current extends the runtime of battery-powered systems.
2. Feature
1. Wide VIN range: 4.5V to 60V (65V Abs Max)
2. Wide output voltage range: 0.8V ≤ VOUT ≤ 99% • VIN
3. Adjustable gate drive level 5V to 10V (OPTI-DRIVE)
4. No external bootstrap diode required
5. Low operating IQ: 29μA (single channel on)
6. Selectable gate drive UVLO threshold
7. Out-of-phase operation reduces required input capacitance and power supply induced noise
8. Phase lock frequency: 75kHz to 850kHz
9. Selectable continuous, pulse-skipping, or low-ripple Burst Mode® operation at light loads
10. Optional current limit (LTC3892/LTC3892-2)
11. Very low dropout operation: 99% duty cycle
12. Power Good Output Voltage Monitor (LTC3892/LTC3892-2)
13. Low shutdown IQ: 3.6μA
14. Small 32-pin 5mm × 5mm QFN package (LTC3892/LTC3892-2) or TSSOP package (LTC3892-1)
3. Application
1. Automotive and industrial power systems
2. Distributed DC power system
3. High voltage battery powered system

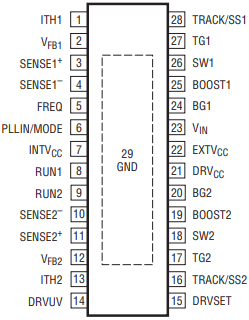

4. Pin configuration
