1. DESCRIPTION
The LTC®4368 protects applications from power supply voltages that may be too high, too low, or even negative and from overcurrent faults in both forward and reverse directions. The LTC4368IMS-2#TRPBF controls the gate voltage of a pair of external N-channel MOSFETs to ensure that the load is connected to the input supply only when there are no voltage or current faults. Two comparator inputs allow configuration of the overvoltage (OV) and undervoltage (UV) set points using an external resistive divider. A current sense resistor sets the forward and reverse circuit breaker current thresholds. After a forward current fault, the LTC4368 will either latchoff power, or retry after a user adjustable delay. After a reverse current fault, the LTC4368 waits for the output to fall 100mV below the input to reconnect power to the load. The LTC4368 has a 32ms turn-on delay that debounces live supply input connections and blocks 50Hz and 60Hz AC power. UV/OV faults also trigger the 32ms recovery delay before the external MOSFETs are turned back on.
2. FEATURES
1. Wide Operating Voltage Range: 2.5V to 60V
2. Overvoltage Protection to 100V
3. Reverse Supply Protection to –40V
4. Bidirectional Electronic Circuit Breaker:
- +50mV Forward Sense Threshold
- –50mV Reverse (LTC4368-1)
- –3mV Reverse (LTC4368-2)
5. Adjustable ±1.5% Undervoltage and Overvoltage Thresholds
6. Low Operating Current: 80µA
7. Low Shutdown Current: 5µA
8. Controls Back-to-Back N-Channel MOSFETs
9. Blocks 50Hz and 60Hz AC Power
10. Hot Swappable Supply Input
11. Pin-Selectable Overcurrent Auto-Retry Timer or Latchoff
12. 10-Pin MSOP and 3mm × 3mm DFN Packages
13. AEC-Q100 Qualified for Automotive Applications
3. APPLICATIONS
1. Reverse Battery Protection
2. Portable Instrumentation
3. Automotive and Industrial Surge Protection
4. Energy Storage Systems
4. PIN CONFIGURATION

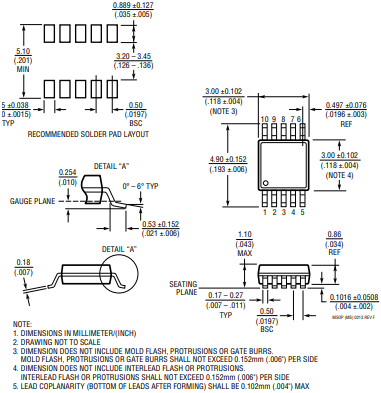

5. Package overview
