1. Description
The MAX3232CD device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate
2. Features
1. RS-232 Bus-terminal esd protection exceeds ±15 kV using human-body model (HBM)
2. Meets or exceeds the requirements of TIA/ EIA-232-F and ITU V.28 standards
3. Operates with 3-V to 5.5-V VCC supply
4. Operates up to 250 kbit/s
5. Two drivers and two receivers
6. Low supply current: 300 μA Typical
7. External capacitors: 4 × 0.1 μF
8. Accepts 5-V logic input with 3.3-V supply
9. Alternative high-speed terminal-compatible devices (1 Mbit/s)
– SN65C3232 (–40°C to 85°C)
– SN75C3232 (0°C to 70°C)
3. Applications
1. Industrial PCs
2. Wired networking
3. Data center and enterprise networking
4. Battery-powered systems
5. PDAs
6. Notebooks
7. Laptops
8. Palmtop PCs
9. Hand-held equipment
4. Pin Configuration

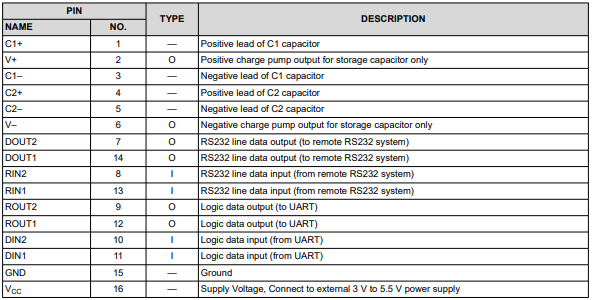

5. Pin Functions

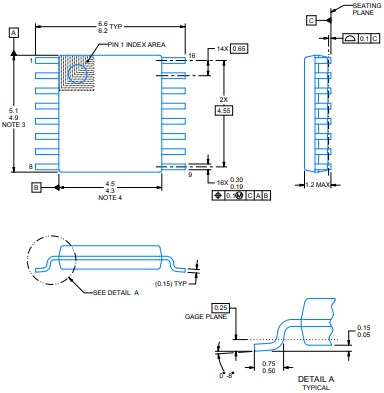

6. PACKAGE OUTLINE
