1. Describe
The MAX3232IPWR device consists of two line drivers, two line receivers, and a dual charge pump circuit with ±15 kV ESD protection pin-to-pin (serial port connections, including GND). The device is TIA/EIA-232-F compliant and provides the electrical interface between the asynchronous communication controller and the serial port connector. A charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The devices operate at data signaling rates up to 250 kbit/s and driver output slew rates up to 30-V/μs.
2. Feature
1. RS-232 bus terminal ESD protection over ±15 kV using Human Body Model (HBM)
2. Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
3. Operates from a 3V to 5.5V VCC supply
4. Operation up to 250 kbit/s
5. Two drivers and two receivers
6. Low supply current: 300 μA (typ)
7. External capacitor: 4 × 0.1 μF
8. Accepts 5V logic input and 3.3V power supply
9. Replacement of high-speed terminal compatible equipment (1 Mbit/s)
– SN65C3232 (–40°C to 85°C)
– SN75C3232 (0°C to 70°C)
3. Application
1. Industrial PC
2. Wired Internet
3. Data Centers and Enterprise Networks
4. Battery powered system
5. Pocket PC
6. Notebook
7. laptop
8. Pocket PC
9. Handheld devices
4. Pin configuration

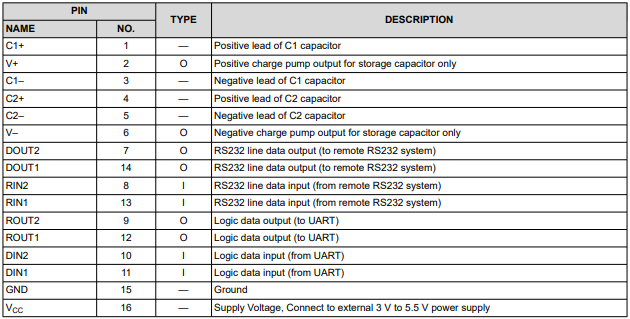

5. Pin Description
