1. FEATURES
1. Low power loss, high efficiency
2. Guardring for overvoltage protection
3. High surge current capability
4. UL Recognized File # E-326243
5. Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
6. Halogen-free according to IEC 61249-2-21 definition
2. MECHANICAL DATA
Case: TO-247AD (TO-3P) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - halogen-free Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test with prefix "H" on packing code meet JESD 201 class 2 whisker test

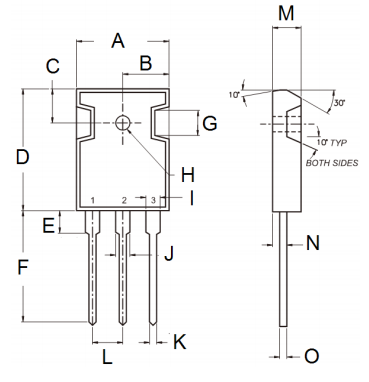

3. PACKAGE OUTLINE DIMENSIONS
