1. Features
1. 250 V Blocking Voltage
2. Low Forward Voltage Drop, VF = 0.86 V
3. Soft Recovery Characteristic, TRR < 35 ns
4. Stable Switching Performance Over Temperature
5. These Devices are Pb−Free and are RoHS Compliant
2. Benefits
1. Reduces or Eliminates Reverse Recovery Oscillations
2. Minimizes Need for EMI Filtering
3. Reduces Switching Losses
4. Improved Efficiency
3. Applications
1. Power Supply
2. Power Management
3. Automotive
4. Instrumentation
4. Mechanical Characteristics
1. Case: Epoxy, Molded
2. Weight: 1.9 grams (approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Epoxy Meets UL 94 V−0 at 0.125 in

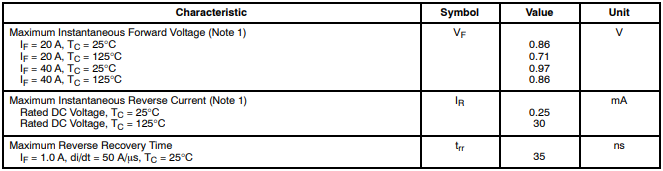

5. ELECTRICAL CHARACTERISTICS
6. Package overview
