1. Describe
These devices use the Schottky barrier principle over a large area Metal silicon power diode. State-of-the-art geometric features Epitaxial structure with oxide passivation and metal coating get in touch with. Very suitable for low-voltage, high-frequency rectification, or As a freewheeling and polarity protection diode, surface mount Applications where compact size and weight are critical to the system.
2. Features
1. Small Compact Surface Mountable Package with J-Bend Leads
2. Rectangular Package for Automated Handling
3. Highly Stable Oxide Passivated Junction
4. Very Low Forward Voltage Drop (0.5 V Max @ 3.0 A, TJ = 25°C)
5. Excellent Ability to Withstand Reverse Avalanche Energy Transients
6. Guard-Ring for Stress Protection
7. Device Passes ISO 7637 Pulse #1
8. SBRS8 and NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
9. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
3. Mechanical Characteristics
1. Case: Epoxy, Molded, Epoxy Meets UL 94 V−0
2. Weight: 217 mg (Approximately)
3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
5. Polarity: Polarity Band on Plastic Body Indicates Cathode Lead
6. Device Meets MSL 1 Requirements
7. ESD Ratings:
- Machine Model = C (> 400 V)
- Human Body Model = 3B (> 8000 V)

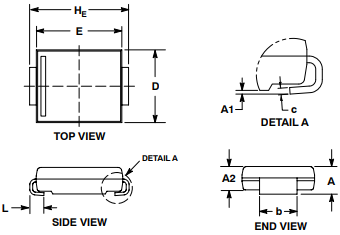

4. Package Size
