1. Description
The MC34PF3001A7EP is a SMARTMOS power management integrated circuit (PMIC) designed specifically for always ON applications with the NXP i.MX 7 and i.MX 6 SoloLite/SoloX/UltraLite application processors. With up to three buck converters, six linear regulators, RTC supply, and coin-cell charger, the PF3001 can provide power for a complete system, including applications processors, memory, and system peripherals.
2. Features
1. Three adjustable high efficiency buck regulators: 2.75 A, 1.5 A, 1.25 A
2. Selectable modes: PWM, PFM, APS
3. Programmable output voltage, PWM switching frequency, current limit
4. Six adjustable general purpose linear regulators
5. Input voltage range: 2.8 V to 4.5 V or 3.7 V to 5.5 V
6. I2C control
7. Coin cell charger and always ON RTC supply
8. -40 °C to +125 °C Operating Junction Temperature
3. Applications
1. IPTV
2. Set top boxes
3. POS terminals
4. Industrial control
5. Medical monitoring
6. Home automation/security/energy management

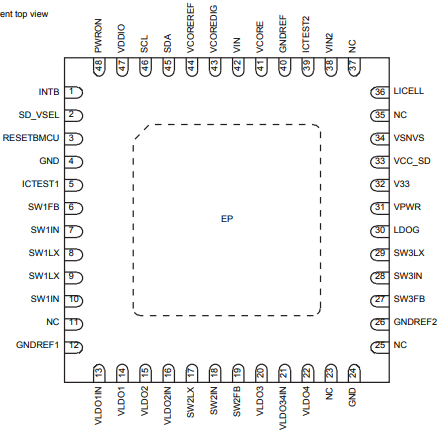

4. Pinout diagram

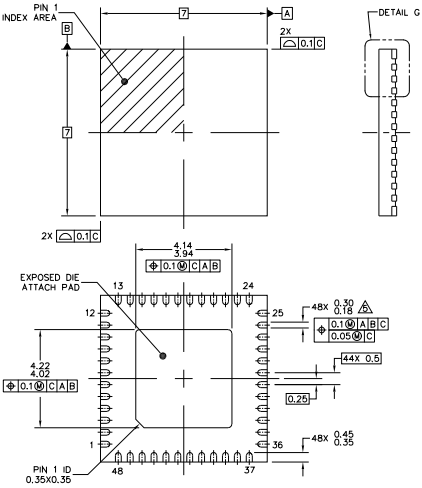

5. Packaging dimensions
